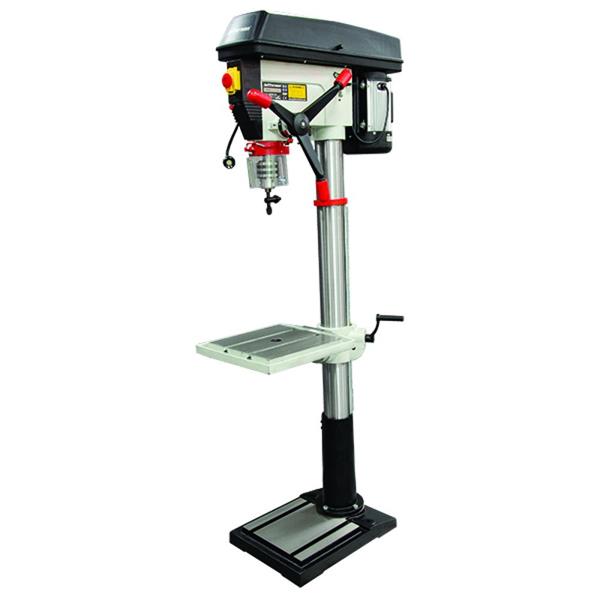

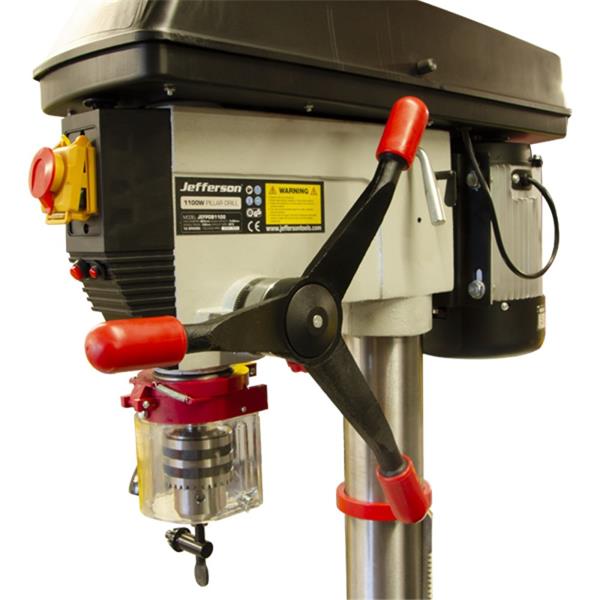

Jefferson JEFPDB1100 Pillar Drill 1100W
The Jefferson JEFPDB1100 is a robust, high‑power pillar drill built around a 1100‑watt motor, giving it the torque needed for drilling larger holes in hardwoods, plastics, and mild steel. Its cast‑iron construction provides rigidity and stability, reducing vibration and improving drilling accuracy. The machine includes pre‑drilled mounting holes, allowing it to be securely fixed to a bench or stand for safe operation.
Features
- Cast iron working table and cast iron base
- Micro-switch inside pulley cover box

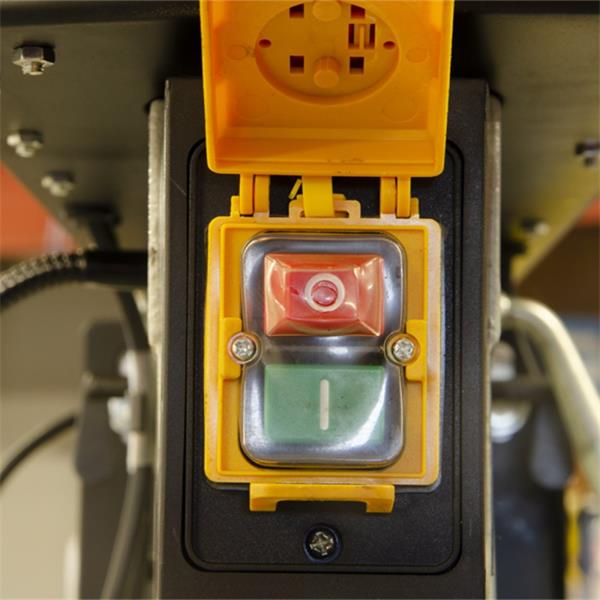

- Front emergency switch
- Cast iron feeding handle

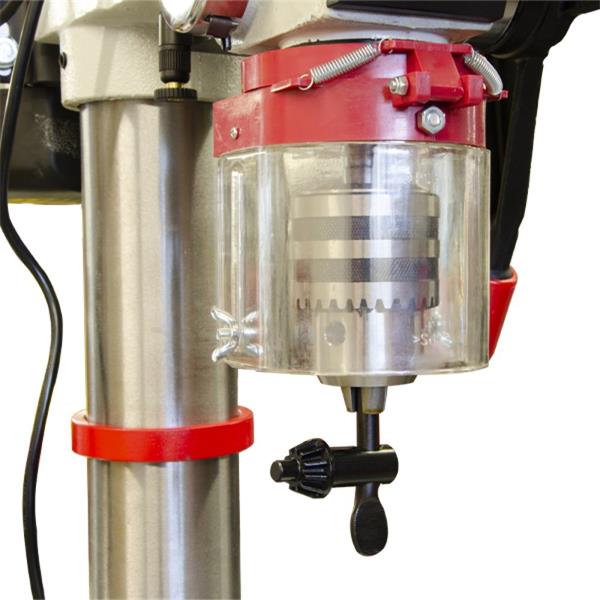

- Chuck guard
- Cast iron belt pulley
- Rack lifting system
- Flexible LED working light
- Cross laser light
Specifications
- Chuck Capacity 20mm
- Height 1710mm
- Max. Drilling Diameter 25mm / 1"
- Motor Power 1100W
- Number of Speeds 12
- Speed 150-2450rpm
- Spindle Travel 120mm
- Voltage 230V
- Net Weight 106 kg
- Gross Weight 110 kg
- Dimensions 806 x 402 x 1205mm
Applications
- Drilling hardwood, softwood, plastics, and mild steel
- Precision drilling for cabinetry, joinery, and furniture making
- Fabrication work such as brackets, plates, and fixtures
- Repetitive drilling tasks requiring consistent accuracy
- Workshop engineering tasks where a stable, cast‑iron drill press is needed
Comes With
- 750W drill press unit
- 16 mm keyed chuck
- Chuck key
- Cast‑iron base and column

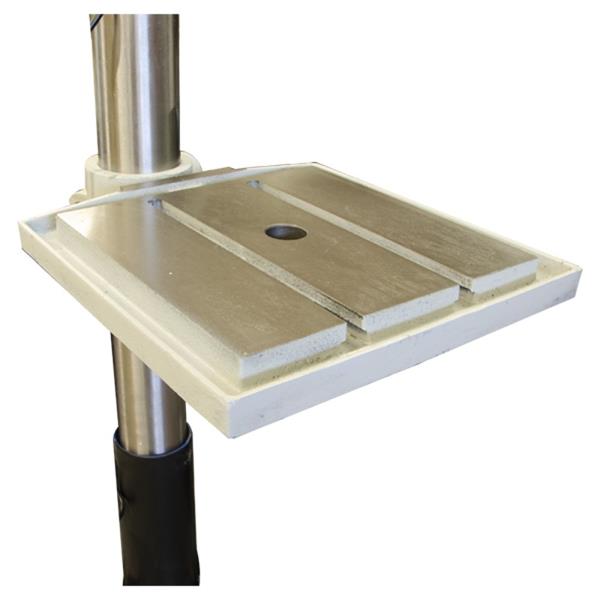

- Tilting drill table
- Pulley/belt system
- Safety belt‑cover micro‑switch
- Emergency stop switch
- Assembly hardware
- User manual
